Added 2 new circuits.
Fished new wires from circuit box in basement through finished basement
ceiling to hole drilled in the sill plate here.
One goes to new outlet high on the wall of the small bedroom.
The other goes to the inside outlet and switched outside outlet on
the north wall (away from the street) of the vestibule.
|
|
| 2009-08-30_002_WireToNewOutletInSmallBedroom.jpg |
|
One wire to the new outlet high on the wall of the small bedroom.
The other wire continues upward.
|
|
| 2009-08-30_003_UpTheWallAndAcrossTheBeam.jpg |
|
Up the wall and across the beam
|
|
| 2009-08-30_004_DownToTheNewInsideOutlet.jpg |
|
Down the wall to the new inside outlet
|
|
| 2009-08-30_006_AcrossToTheSwitchedOutsideOutlet.jpg |
|
Across and up to the switch, then down to the switched outside outlet
|
|
| 2009-08-30_007_ExistingWireToLivingRoomSwitches.jpg |
|
The rest of the vestibule -- inside and outside lights and the outlet on the
south wall (facing the street) -- are added to the existing living room
circuit.
Here's that existing wire coming down through the living room wall from
the attic.
|
|
| 2009-08-30_008_NewWiresFromLivingRoomSwitches.jpg |
|
New wires coming from living room switches.
These go to the inside and outside lights, the outlet on the south side (facing street) and the doorbell.
|
|
| 2009-08-30_009_ThroughTheWallStuds.jpg |
|
Through the wall studs
|
|
| 2009-08-30_010_ToTheNewAboveCounterOutlet.jpg |
|
To the new outlet above counter height
|
|
| 2009-08-30_011_BelowTheWindowAndUp.jpg |
|
Below the window and up to the switches
|
|

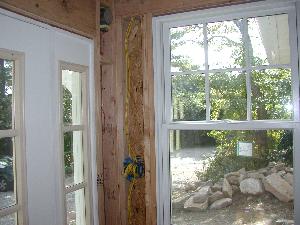

| 2009-08-30_012_SwitchesForInsideAndOutsideLights.jpg |
|
Switches for the inside and outside lights
|
|

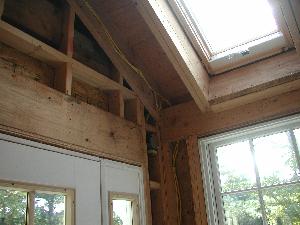

| 2009-08-30_013_PowerToDoorbellAndUpForLights.jpg |
|
Power to the doorbell and continuing up for the lights
|
|
| 2009-08-30_014_PowerToInsideAndOutsideLights.jpg |
|
One wire to the outside light, one to the inside light
|
